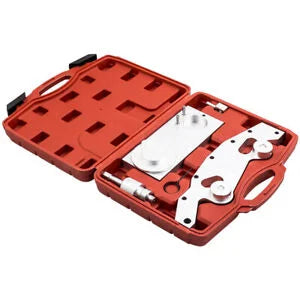

O’Reilly – Complete Timing Special Tools Bundle for BMW M52/M52TU/M54/,M56 Alignment Jig

Package Includes:
1x Alignment Jig: Adjusting plate for setting valve.timing on engine with double Vanos.
1x Sprocket Assembly Jig: Use for preassembling.secondary chain sprockets with chain on camshafts
1x Rigid Chain Tensioner: Use to tension primary chain
1x Chain Tensioner Lock Pin: Locks chain tensioner.during timing
1x Vanos Compressed Air Connection: Use to pressurize the single and double Vanos unit when checking or removing
and replacing.

OEM Number:
Alignment Jig 116150
Sprocket Assembly Jig 116180
Rigid Chain Tensioner 114220
Chain Tensioner Lock Pin 113292
Vanos Compressed Air Connection 113450

Application for:
for BMW 6 cylinder engine: M52TU (1998-2000). M54 (2001-2004). & M56 (2003 to present).

M52TUB25
* 1997-2001 E46 323i/323Ci/323ti (M52T)
* 1998-2001 E39 523i (M52TU)
* 1998-2001 E36/7 Z3 (M52TU)

M52TUB28
* 1997-2001 E46 328i/328Ci (M52TU)
* 1997-2001 E36/7 Z3 2.8 (M52B28/Z3)
* 1998-2001 E39 528i (M52TU)
* 1998-2001 E38 728i (M52TU)

M54B22
* 2001-2003 E46 320i/320Ci
* 2001-2003 E39 520i
* 2001-2002 E36 Z3 2.2i
* 2003-2005 E85 Z4 2.2i
* 2003-2005 E60/E61 520i

M54B25
* 2001-2002 E36/7 Z3 2.5i
* 2001-2005 E46 325i/325xi
* 2001-2006 E46 325Ci
* 2001-2004 E46 325ti
* 2001-2004 E39 525i
* 2003-2004 E60/E61 525i/525xi
* 2004-2006 E83 X3 2.5i
* 2004-2006 E85 Z4 2.5i

M54B30
* 2001-2005 E46 330i/330xi
* 2001-2006 E46 330Ci
* 2001-2003 E39 530i
* 2001-2002 E36 Z3 3.0i
* 2003-2005 for BMW E60 530i
* 2003-2006 E85 Z4 3.0i
* 2004-2006 E83 X3 3.0i
* 2001-2006 E53 X5 3.0i
